END GLOW OPTIC FIBER
Name：BLACK MULTI CORE END GLOW FIBER
Details

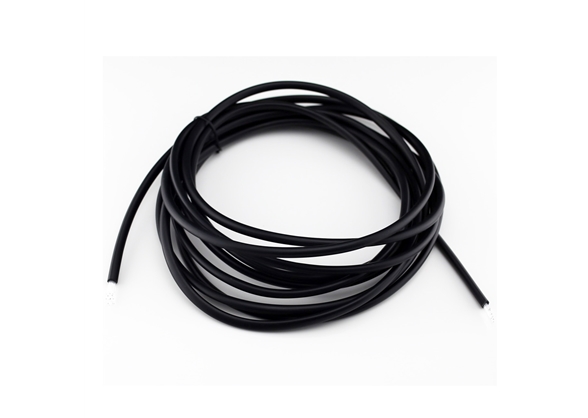

BLACK MULTI CORE END GLOW LIGHT FIBER OPTIC CABLE
FEATURES
Better anti-crunch , anti-stretch , anti-grinding , and anti-aging performances brought by the black PVC jacket , extending operation life ;
Unique loose jacket adopted in the lighting series , easy to peel off;

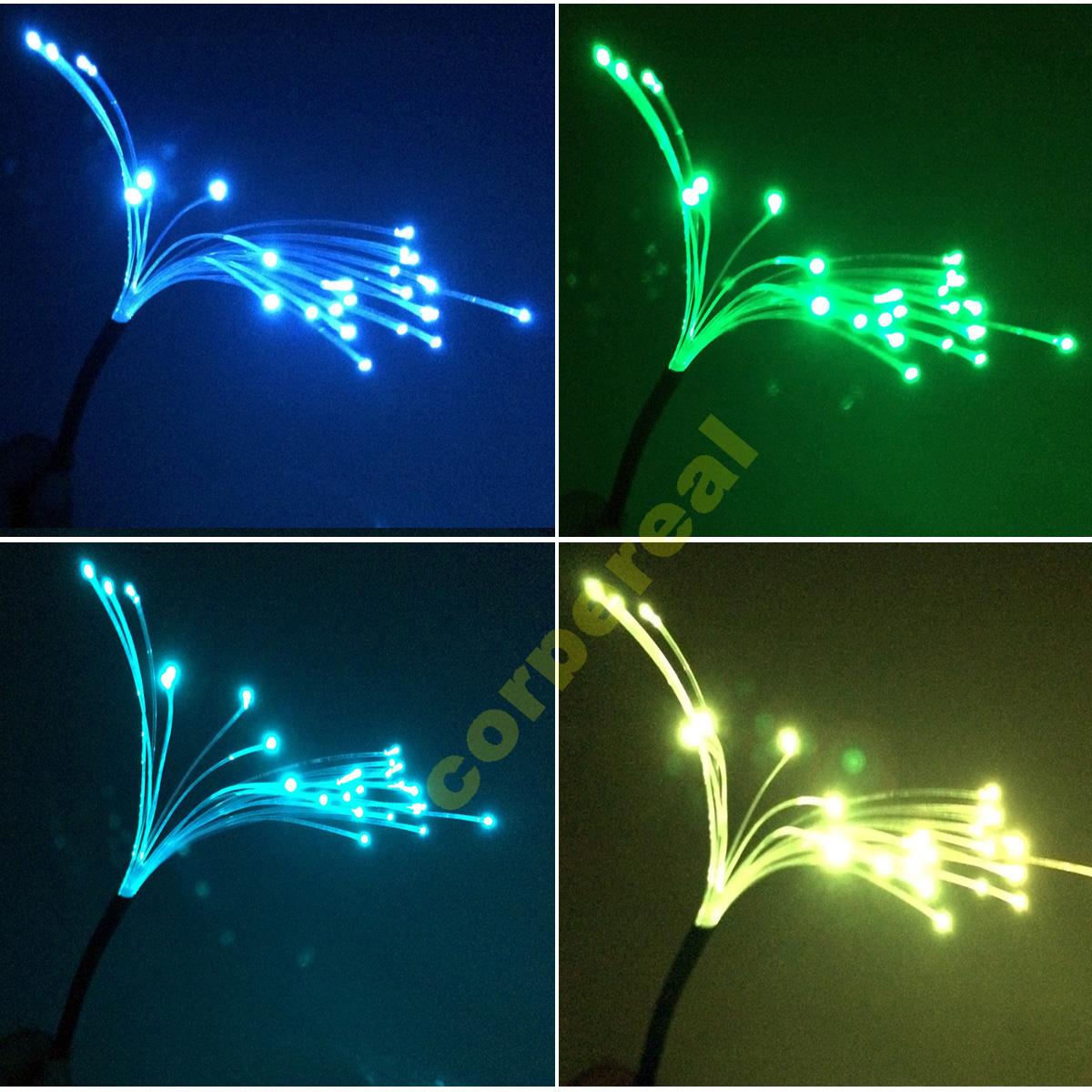

Varied end-lighting effect created by cables (with different number of fibers)of different diameters, better end-lighting effect than single core fiber or cable.
BASIC PROPERTIES
Fiber core / clad material: Polymethylmethacrylate(PMMA)/Fluroresin;
Jacket material: Black PVC;
Numerical aperture: 0.5;
Cable appearance: Smooth surface, no visible crackles, defects or mechanical damage ;
Cable diameter: fluctuation ±5% ;
Using temperature range of the cable: -40 ~ +70 ℃ ;
|
Model |
Core Number(Pcs) |
Fiber Dia(MM) |
Outer Dia(MM) |
Length(M/reel) |
| BMK-750-4 | 4 | 0.75 | 3.0±1 | 450 |
| BMK-750-7 | 7 | 0.75 | 4.0±1 | 450 |
| BMK-750-14 | 14 | 0.75 | 5.0±1 | 300 |
| BMK-750-25 | 25 | 0.75 | 6.0±1 | 100 |
| BMK-750-42 | 42 | 0.75 | 8.0±1 | 100 |
| BMK-750-75 | 75 | 0.75 | 12.0±2 | 100 |
| BMK-750-126 | 126 | 0.75 | 14.0±2 | 100 |
| BMK-1000-4 | 4 | 1.0 | 3.0±1 | 450 |
| BMK-1000-7 | 7 | 1.0 | 4.0±1 | 450 |
| BMK-1000-14 | 14 | 1.0 | 5.0±1 | 300 |
| BMK-1000-25 | 25 | 1.0 | 6.0±1 | 100 |
| BMK-1000-42 | 42 | 1.0 | 8.0±1 | 100 |
| BMK-1000-75 | 75 | 1.0 | 12.0±2 | 100 |
| BMK-1000-126 | 126 | 1.0 | 14.0±2 | 100 |
Note: Multi-core fiber optic cables with other cores and structures can be processed according to customers' requirements.
APPLICATIONS

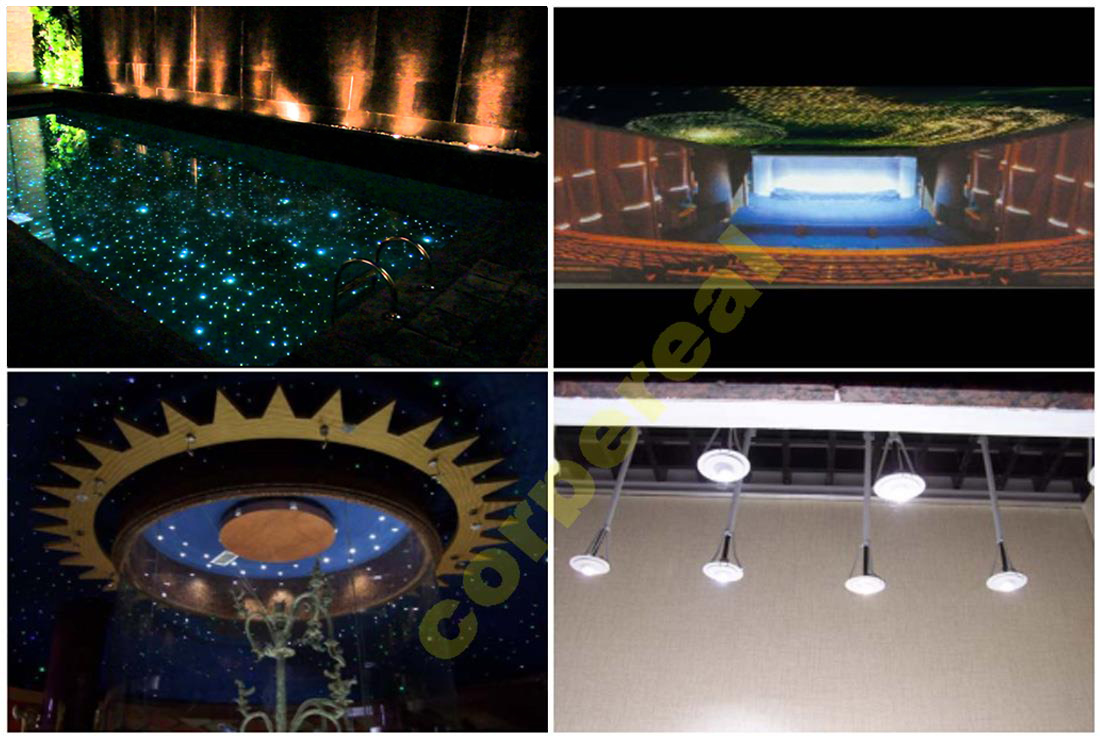

It can be used in Light Decoration with special light source, such as star ceiling, optical fiber 3-D mirror, optical chandelier, optical fiber logos and so on. It also be used in swimming pool, oil depot, and museum illumination since it does not transmit the ultraviolet rays and infrared rays, and does not conduct heat and electricity.
End emitting fiber; End glow optical fiber cable; starlight fiber cable
