FIBER OPTIC LIGHT KIT

FIBER OPTIC LIGHT KIT

TWINKLE&METEOR FIBER OPTIC STAR LIGHT

Name:TWINKLE&METEOR FIBER OPTIC STAR LIGHT

Details




12v 2-IN-1 RGB+W WIRELESS APP FIBER OPTIC STAR LIGHT KIT FOR INDOOR CEILING CAR STARLIGHT ROOF HEADLINER



    Fiber optic starry sky car headliner is a kind of car accessories, it is including led light source, endglow fiber optic cables. It can set a starry sky pattern made of fiber optic on the headliner of the car(It can also be used on the roof headliner of buses, coaches and other large vehicles), so that the interior or the roof headliner of the car can present the visual effect of the bright starry river. It creates a starry sky effect (static lights, twinkle lights, shooting star lights, ...etc)in the interior or roof of a car through fiber optic technology. This design creates beautiful star patterns and gives passengers a unique and romantic atmosphere.



Features and Advantages:

  1. Aesthetics: fiber optic stars can be designed with different star arrangements and colors according to personal preferences.
  2. Low energy consumption: fiber optic lamps have low energy consumption, which will not put a big burden on the vehicle's battery.
  3. Night atmosphere: when driving at night, the fiber optic stars can create a very dreamy visual effect.
  4. Customization: users can customize the number, color and arrangement of the fiber optics according to their preferences.

Installation:

     1. Professionalism: it is recommended to be installed by professionals to ensure that the fiber optics are properly laid out and connected.

     2. Position: usually installed inside the roof of the car, the optical fiber is led through small holes to create a starry sky effect.

     3. Steps :
- Remove the roof, first of all, the roof of the original roof removed, in the process of removing to be careful next to the parts.
- Punch holes, available tools such as pencils, draw a pattern to do, in accordance with the pattern drawn for drilling holes.
- Insert the fiber optic, starry sky roof is generally used 0.5mm, 0.75mm and 1.0mm fiber optic cable, so as to form a bright different with a sense of hierarchy.
Layers of starry sky roof.
- The optical fiber fixed, this step requires patience to use hot melt adhesive to fix each optical fiber, the use of hot melt adhesive benefits of high temperature characteristics.
- Stick on the anti-noise materials, starry sky roof generally do not have soundproof effect, so add some soundproof material to play the effect of soundproof noise.
- Trimming fiber optic line, the excess exposed line using small scissors and pliers to repair all clean, so as not to affect the perception.
- Power test, plug in the power supply, test whether the pattern meets the pre-designed requirements, after the power error-free roof installed.
- Test again, after installing the power again to test the effect.

Maintenance:

         - Fiber optic material is durable and relatively easy to maintain, usually only need to regularly check whether the connection is firm.

   This kind of decoration is more common in luxury cars and high-end tuning cars, and is also increasingly favored by young consumers.






Specification:

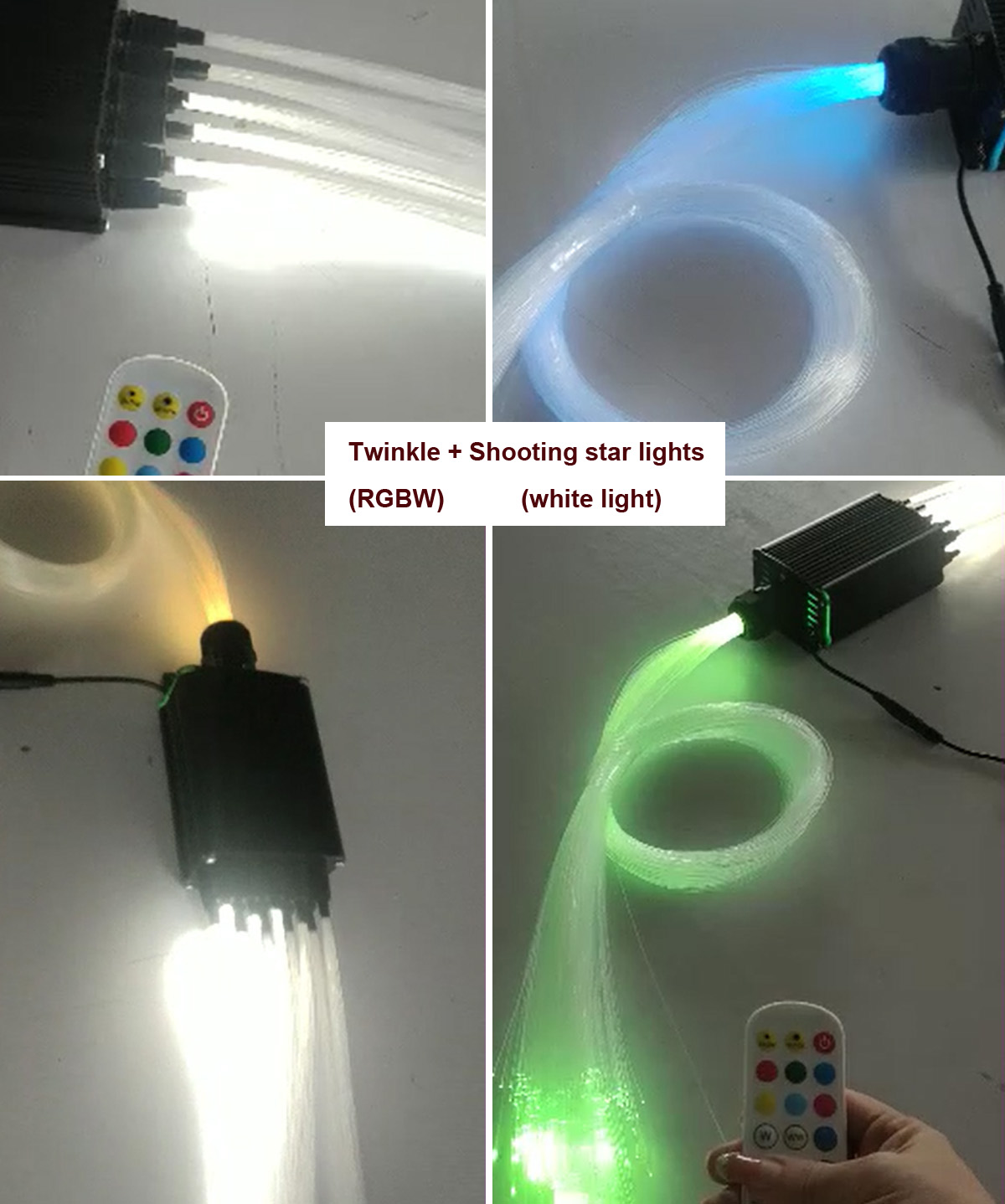

* P.N: 2-in-1 APP audio voice wireless led illuminator ( Twinkle lights + white light shooting star lights);
* Voltage: DC12V;
* Led: 1x RGBW led + 10Pcs white leds or 2x RGBW leds + 10Pcs white leds ;
* Power:16W or 25W( Double coupling heads);
* Light color: Multi-color (Twinkle lights) + white light (shooting star lights);
* Light mode: Static light, flash light, strobe light, fade light, jump light, shooting star lights, twinkle lights;

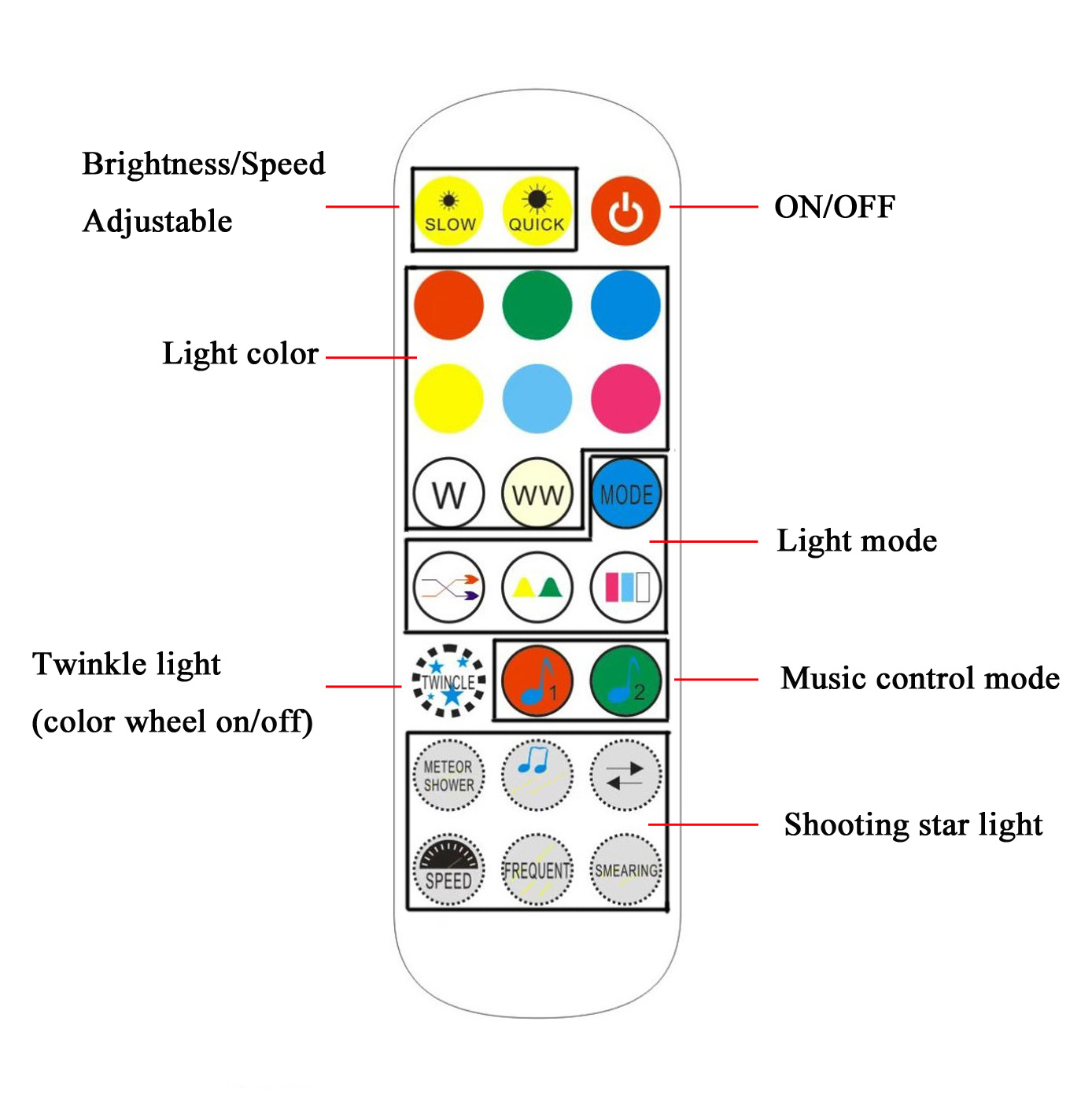

* With wireless audio voice remote controller;
* Control mode: Smart-phone APP, wireless music voice remote controller(wireless rf remote+ music voice control);
* With memory function;
* With DC 12V power adapter, or car cigarette adapter;
* Diamter of each port (Twinkle lights): 20MM ;
* Diameter of each port(Shooting star light):5MM ( 10Pcs) ;
* Size:L123× W95 × H55mm ;
* Weight:0.7kg;
* Led life:50000hrs;

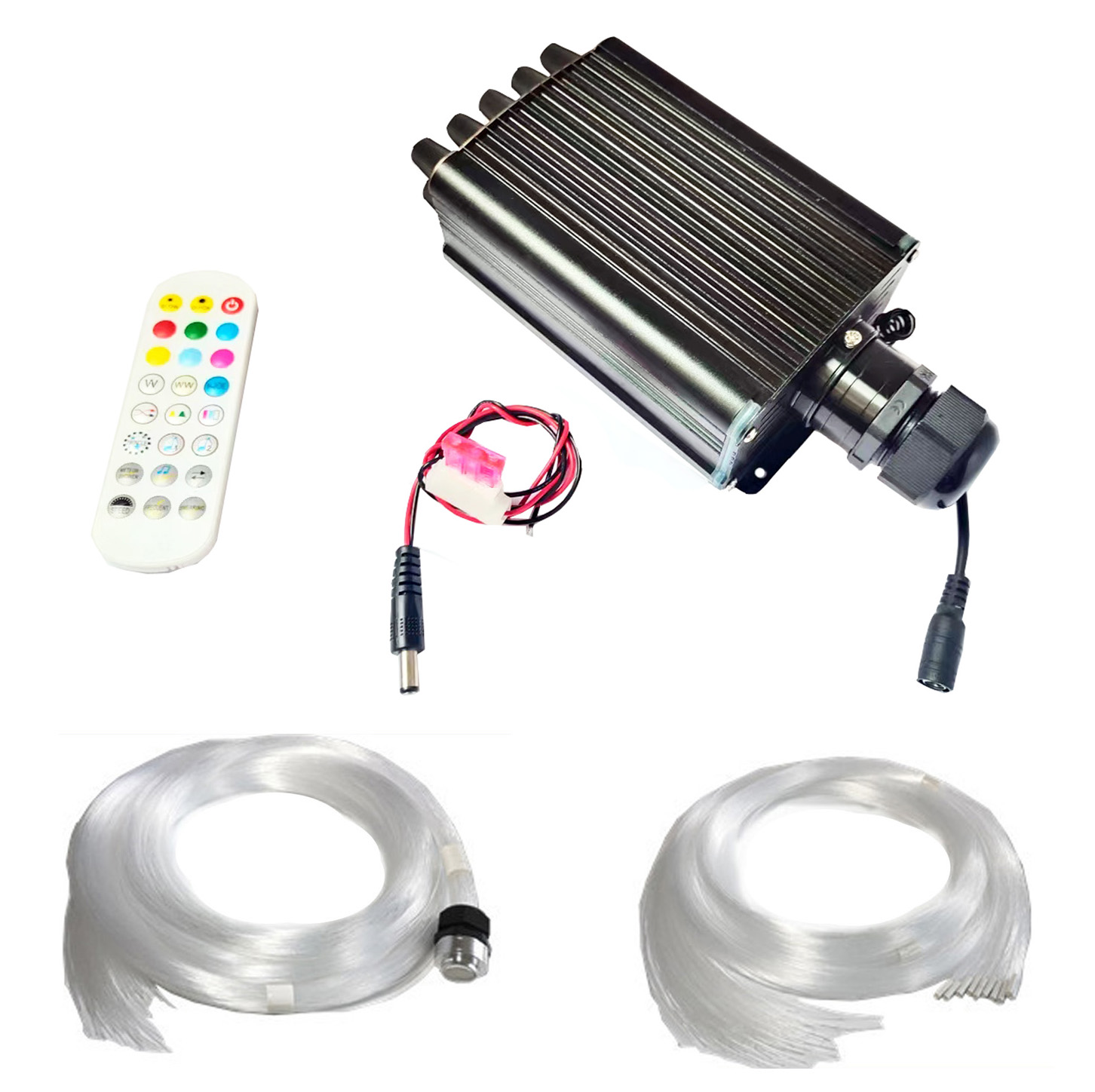

* With fiber optic cables;

LED Illuminator Fiber
Model Light Color Light Mode Diameter
(MM)
Quantity
(PCS)
Length
(M)
M16WTSARFRGBWFBL6007504 Multi-color + Pure white Twinkle, Static, jump... 0.75mm 400pcs 4M
Pure white Shooting star 0.75mm 200pcs(10x 20Pcs) 4M
M16WTSARFRGBWFBL7007504 Multi-color + Pure white Twinkle, Static, jump... 0.75mm 500pcs 4M
Pure white Shooting star 0.75mm 200pcs(10x 20Pcs) 4M
M25WTSARFRGBWFBL8007504 Multi-color + Pure white Twinkle, Static, jump... 0.75mm 2x 300pcs 4M
Pure white Shooting star 0.75mm 200pcs(10x 20Pcs) 4M
M25WTSARFRGBWFBL10007504 Multi-color + Pure white Twinkle, Static, jump... 0.75mm 2x 400pcs 4M
Pure white Shooting star 0.75mm 200pcs(10x 20Pcs) 4M
M25WTSARFRGBWFBL12007504 Multi-color + Pure white Twinkle, Static, jump... 0.75mm 2x 500pcs 4M
Pure white Shooting star 0.75mm 200pcs(10x 20Pcs) 4M
Note: 1) The diameter, quantity and length of optical fibers can be customized according to requirements;


Application

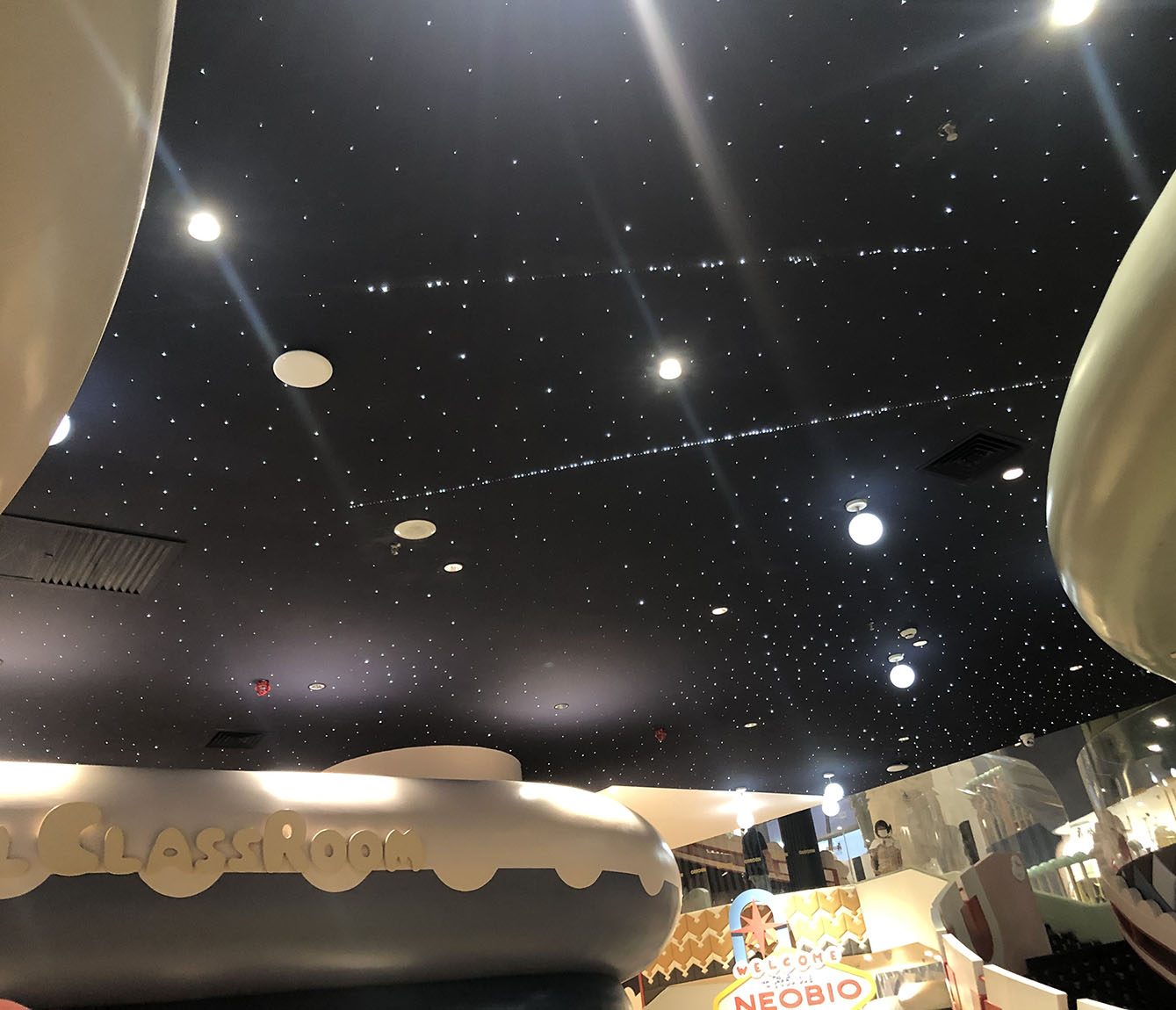

  Fiber optic Car starlight roof headliner; Bedroom, hotel, bar, KTV (karaoke), nightclub, shopping mall, starry sky, background wall, party, home decoration, festive venue lighting decoration.




Starlight car headliner; Fiber optic star light kit; Starlight headliner; fiber optical light kit
